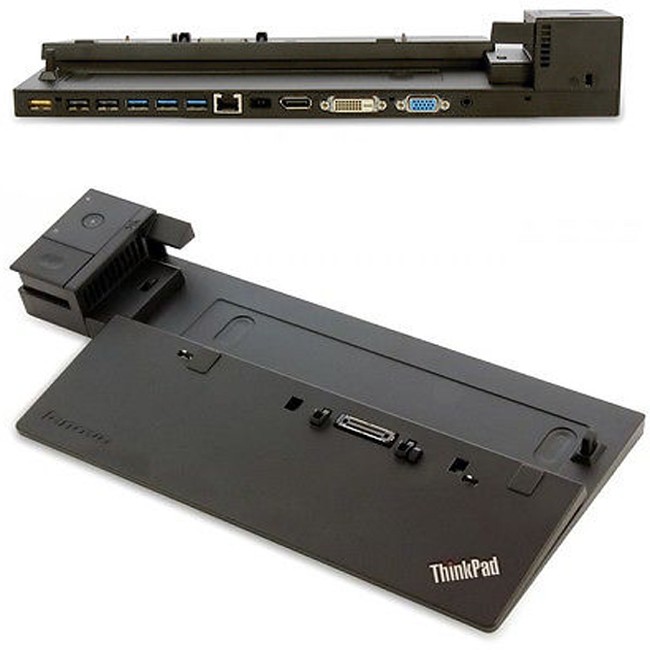

Lenovo ThinkPad Pro Docking station
Passer til:
Lenovo ThinkPad L440 ¦ Lenovo ThinkPad L450 ¦ Lenovo ThinkPad L460 ¦ Lenovo ThinkPad L470 ¦ Lenovo ThinkPad L540 ¦ Lenovo ThinkPad L560 ¦ Lenovo ThinkPad L570 ¦ Lenovo ThinkPad P50s ¦ Lenovo ThinkPad P51s ¦ Lenovo ThinkPad T440 ¦ Lenovo ThinkPad T440p (2 cores) ¦ Lenovo ThinkPad T440s ¦ Lenovo ThinkPad T450 ¦ Lenovo ThinkPad T450s ¦ Lenovo ThinkPad T460 ¦ Lenovo ThinkPad T460p ¦ Lenovo ThinkPad T460s ¦ Lenovo ThinkPad T470 ¦ Lenovo ThinkPad T470p ¦ Lenovo ThinkPad T470s ¦ Lenovo ThinkPad T540p (2 cores) ¦ Lenovo ThinkPad T550 ¦ Lenovo ThinkPad T560 ¦ Lenovo ThinkPad T570 ¦ Lenovo ThinkPad W550s ¦ Lenovo ThinkPad X240 ¦ Lenovo ThinkPad X250 ¦ Lenovo ThinkPad X260 20F5, 20F6 ¦ Lenovo ThinkPad X270
Main features
Expect nothing short of outstanding value with the ThinkPad Pro 90W Dock. Snap your system into the ThinkPad Pro Dock and enjoy all of the connectivity options you could ever need. This Lenovo ThinkPad docking station comes with a ThinkPad AC Adapter which can power and charge your ThinkPad notebook. The Pro 90W Dock connects your ThinkPad to a power supply, the Internet, up to 2 external displays, a keyboard, mouse and a printer. One of the dock’s 3 USB 2.0 ports allows you to charge your mobile phone or tablet, even when your notebook is elsewhere. The USB 2.0 ports are perfect for connecting all of your most frequently used workplace accessories, from mice to keyboards to printers. This ThinkPad docking station also offers 3 USB 3.0 ports for connecting memory keys and external hard drives. The dock is driver-free yet offers a superior level of video quality. It comes with 10/1000 Gigabit Ethernet connectivity, 1x DisplayPort 1.2 (for exclusive use with DVI-D), 1x DVI-D (for exclusive use with DisplayPort), 1x VGA port and 1x Stereo/Mic Combo Audio Port. The cable lock slot allows you to secure the dock to your desk or workspace while the eject button offers quick, effective, one-step notebook removal.
Key Selling Points
- 3x USB 2.0, one supports always-on USB charging
- 3x USB 3.0
- 10/1000 Gigabit Ethernet, supports enterprise manageability
- 1x DisplayPort 1.2 (exclusive use with DVI-D)
- 1x DVI-D (exclusive use with DisplayPort)
- 1x VGA
- Driver-free, perfect video quality
- 1x Stereo/Mic Combo Audio Port
- Security lock hole
- Convenient eject button for one-step system removal
- Physical rear alignment for a perfect dock every time
- Smaller desktop footprint
Specifikationer
| Product Description | Lenovo ThinkPad Pro Dock – port replicator |
| Product Type | Port replicator |
| Dimensions (WxDxH) | 34.5 cm x 16.25 cm x 5.56 cm |
| Weight | 910 g |
| Localisation | Indonesia, Europe |
| Power | Power adapter 90 Watt AC 120/230 V (50/60 Hz) |
| Designed For | ThinkPad L440; L450; L460; L470; L540; L560; L570; P50s; P51s; T440; T440p (2 cores); T440s; T450; T450s; T460; T460p; T460s; T470; T470p; T470s; T540p (2 cores); T550; T560; T570; W550s; X240; X250; X260 20F5, 20F6; X270 |
| General |
| Product Type | Port replicator |
| Width | 34.5 cm |
| Depth | 16.25 cm |
| Height | 5.56 cm |
| Weight | 910 g |
| Localisation | Indonesia, Europe |
| Expansion / Connectivity |
| Interfaces | 3 x USB 2.0 – 4 pin USB Type A ¦ 3 x SuperSpeed USB 3.0 – 9 pin USB Type A ¦ 1 x audio / video – DisplayPort – 20 pin DisplayPort ¦ 1 x display / video – DVI-Digital – 24 pin digital DVI ¦ 1 x display / video – VGA – 15 pin HD D-Sub (HD-15) ¦ 1 x network – 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 1 x docking / port replicator ¦ 1 x audio – headphones/microphone – mini-phone stereo 3.5 mm |
| Miscellaneous |
| Included Accessories | 2 x security keys |
| Features | Security lock slot (cable lock sold separately), 1 USB 2.0 (Always On) |
| Compliant Standards | UL, VCCI, BSMI, GOST, NOM, CB, DOC, FCC, KCC, UkrSEPRO, AS/NZS |
| Power |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 43 °C |
| Compatibility Information |
| Designed For | Lenovo ThinkPad L440 ¦ Lenovo ThinkPad L450 ¦ Lenovo ThinkPad L460 ¦ Lenovo ThinkPad L470 ¦ Lenovo ThinkPad L540 ¦ Lenovo ThinkPad L560 ¦ Lenovo ThinkPad L570 ¦ Lenovo ThinkPad P50s ¦ Lenovo ThinkPad P51s ¦ Lenovo ThinkPad T440 ¦ Lenovo ThinkPad T440p (2 cores) ¦ Lenovo ThinkPad T440s ¦ Lenovo ThinkPad T450 ¦ Lenovo ThinkPad T450s ¦ Lenovo ThinkPad T460 ¦ Lenovo ThinkPad T460p ¦ Lenovo ThinkPad T460s ¦ Lenovo ThinkPad T470 ¦ Lenovo ThinkPad T470p ¦ Lenovo ThinkPad T470s ¦ Lenovo ThinkPad T540p (2 cores) ¦ Lenovo ThinkPad T550 ¦ Lenovo ThinkPad T560 ¦ Lenovo ThinkPad T570 ¦ Lenovo ThinkPad W550s ¦ Lenovo ThinkPad X240 ¦ Lenovo ThinkPad X250 ¦ Lenovo ThinkPad X260 20F5, 20F6 ¦ Lenovo ThinkPad X270 |
